Diamond Burs For Drilling Teeth Treatment Red (F) Fine / 53-63μ
Detailed Product Description:
| Product Name: | Diamond Burs | Size: | Fine |
|---|
| Standard: | CE / ISO / FDA / FSC | Color: | Red |
|---|
| Material: | Diamond + Stainless Steel | Packing: | 5 Pcs Per Blister |
|---|
Specifications:
| Product Name | Diamond Burs |
| Brand Name | D-PERFECT |
| Material | Working Part | Diamond |
| Shank | Stainless Steel |
| Color | Red |
| Size | Fine |
| Application | Used for Grinding Metal Plastic and Porcelain |
Diamond Burs Used In Dentistry
Description:
1. Diamond bur has a stainless steel working part which is coated
with fine diamond crystal.
2. It is defined as the rotary grinding instruments for hard
tissues such as tooth and bones.
3. It is used connecting with dental handpiece .
4. It can also be used for grinding metal, plastic, porcelain and
other hard materials.
5. No diamond spalling must be found by a loupe after bending
electroplated part at 90 degree .
6. According to its intended use , choose the most appropriate
diamond burs and use it for grinding hard tissues etc..
Specifications and models:
Flat head conical , apex type flame , taper head , pointed cone ,
cone round nose cone type , flat type , column type , round ball ,
ball spire tight mouth , single inverted cone, rugby, pear type,
round type.
Classification coding system reflects shapes of burs.
TF / Taper Flat End TR / Taper Round End TC / Taper Conical End
FO / Flame Ogival End SF / Straight Flat End SO / Straight Ogival
End
SR / Straight Round End RS / Rounded Shoulder EX / Special
(Extra) Shape
BR / Ball Round Type BC / Ball Collar Type DI / Double Inverted
Cone
SI / Single Inverted Cone WR / Wheel Round Edge CR / CR Inlay
Preparation Dia-Burs
CD / Children's Dentistry Dia-Burs S / Short Shank SS / Super
Short Shank
C / Coarse F / Fine EF / Extra Fine
Main performance and technical indicators:
1. Shank hardness not less than 250hv0.5 .
2. The surface roughness R of the shank of the car should be no
greater than 0.4mum.
3. Corrosion resistance and corrosion resistance test shall not
produce corrosion and deformation of the function, but it is
allowed to have a slight electrical corrosion in the head and neck
.
4. The radial circle of the needle should be no greater than 0.08
mm.
Diamond Burs For Crown Preparation
Use of instructions and precautions:
1. Sterilization should be sterilized with high temperature steam
before using the needle .
2. Be careful to place the pin on the head of the mobile phone
according to the operation instructions of the mobile phone .
3. When the operation is used , when the needle is rotated , it
will be pressed to the part where it is to be drilled or polished .
4. The pressure of the needle is 50 ~ 100g is appropriate , the
pressure should not be too large , and requires the force to be
uniform .
Storage and duration:
After packing, the needle should be stored in a room with relative
humidity less than 80% , no corrosive gas and good ventilation .
Under the condition that the needle is packed and abide by the
storage rules , it shall be guaranteed not to rust in a year and a
half .

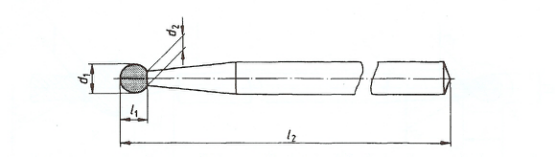

Figures:
The work head shall be specified in the parts according to the
following figures .
D1: the diameter of the working part , the maximum diameter of the
head or part of the working part .
D2: diameter of the neck , indicating the diameter of the shank of
the emery .
L1 : working length , refers to the coating emery working length of
the part .
L2 : refers to the entire bur the length of the needle.
Applications:
| Dental Root Canal Treatment | Hospital , Clinic , lab... |
Competitive Advantage:
1. Diamong bur has a stainless steel working part which is coated
with fine diamond crystal .
2. It is defined as the rotary grinding instruments for hard
tissues such as tooth and bones .
3. It is used connecting with dental handpiece .
4. It can also be used for grinding metal, plastic , porcelain and
other hard materials.
Diamond Burs Color Coding
